BySort
The fully automated sorting system for your laser cutting machine.
Fast & Reliable. Optimized processes.

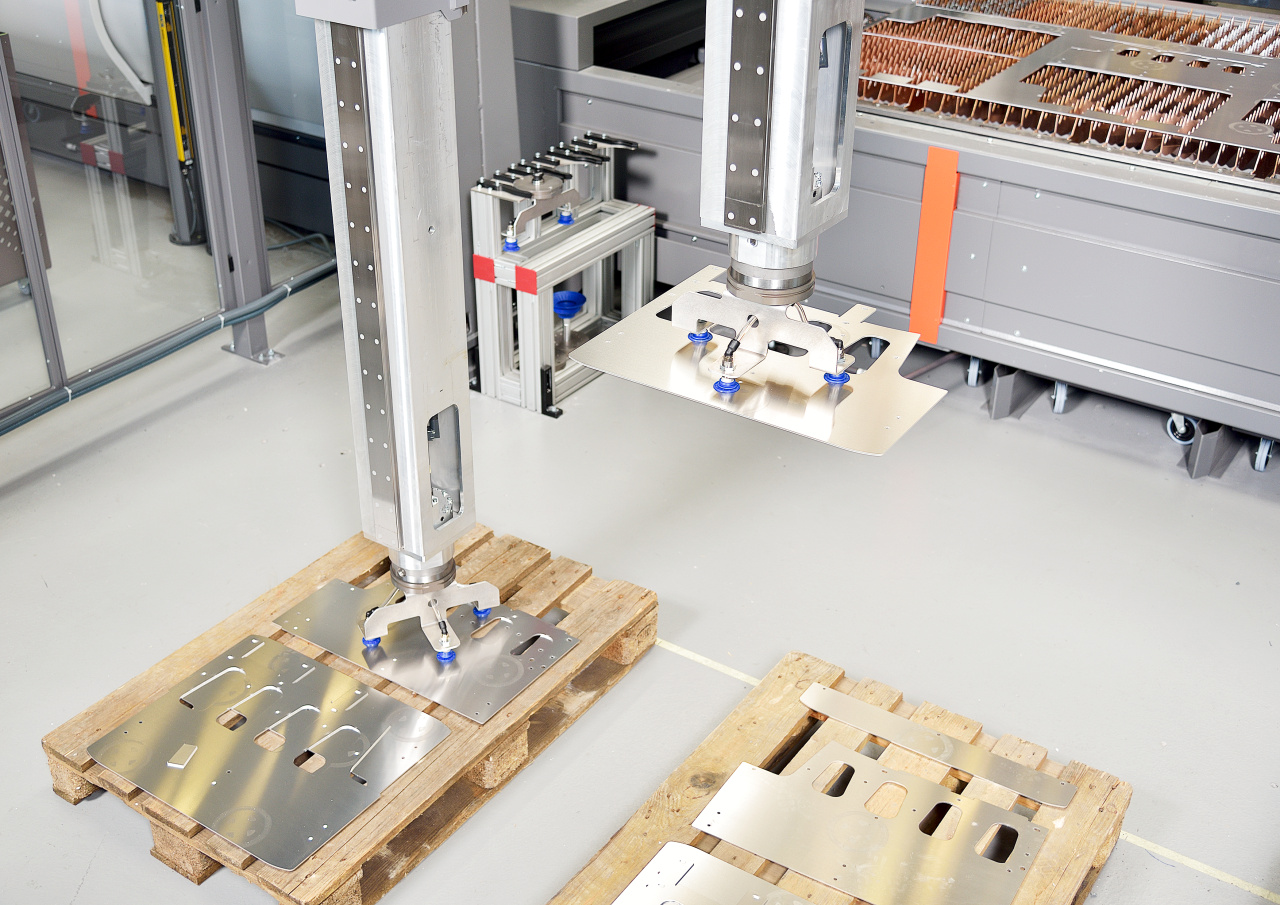

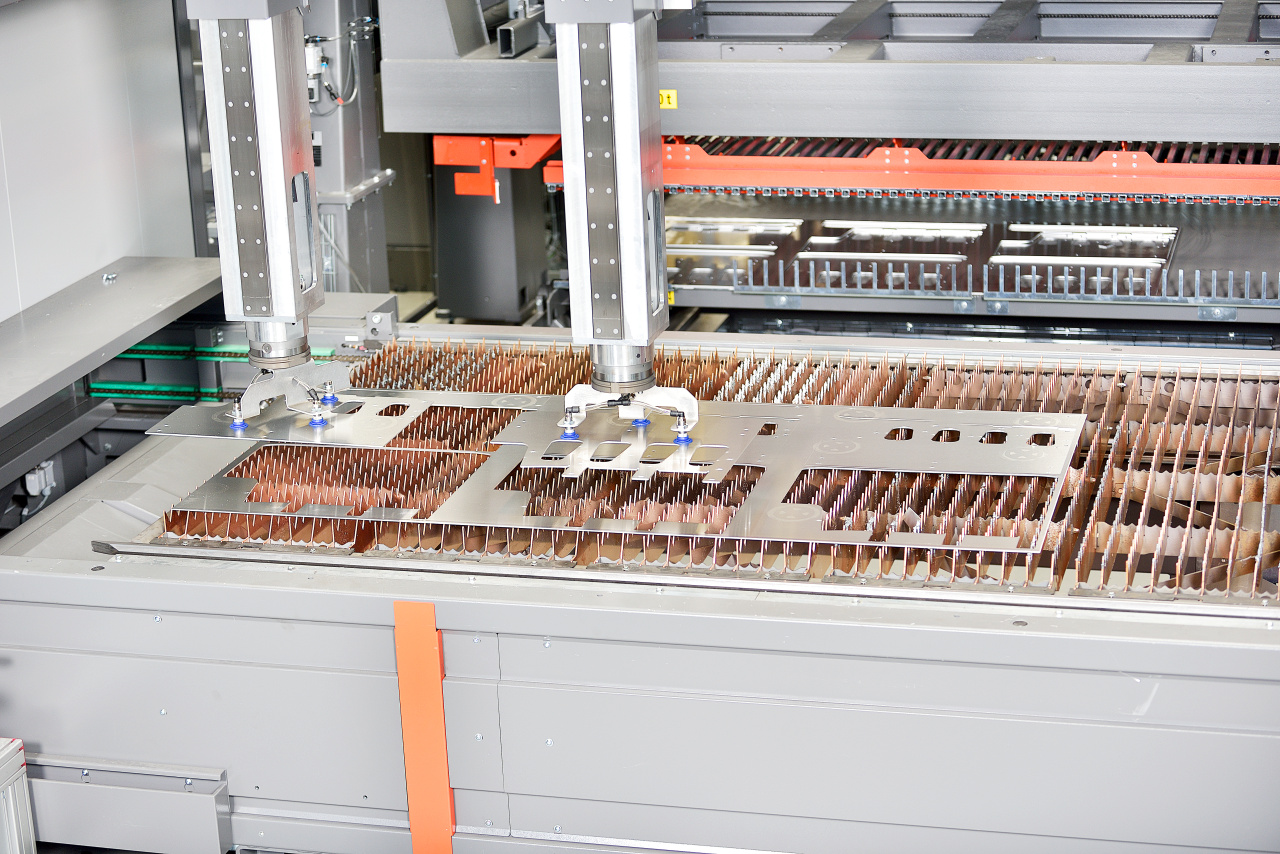

✅ Agile sorting system: BySort automates the removal of the completed cut parts and enables safe and gentle material handling on your ByTrans Modular.

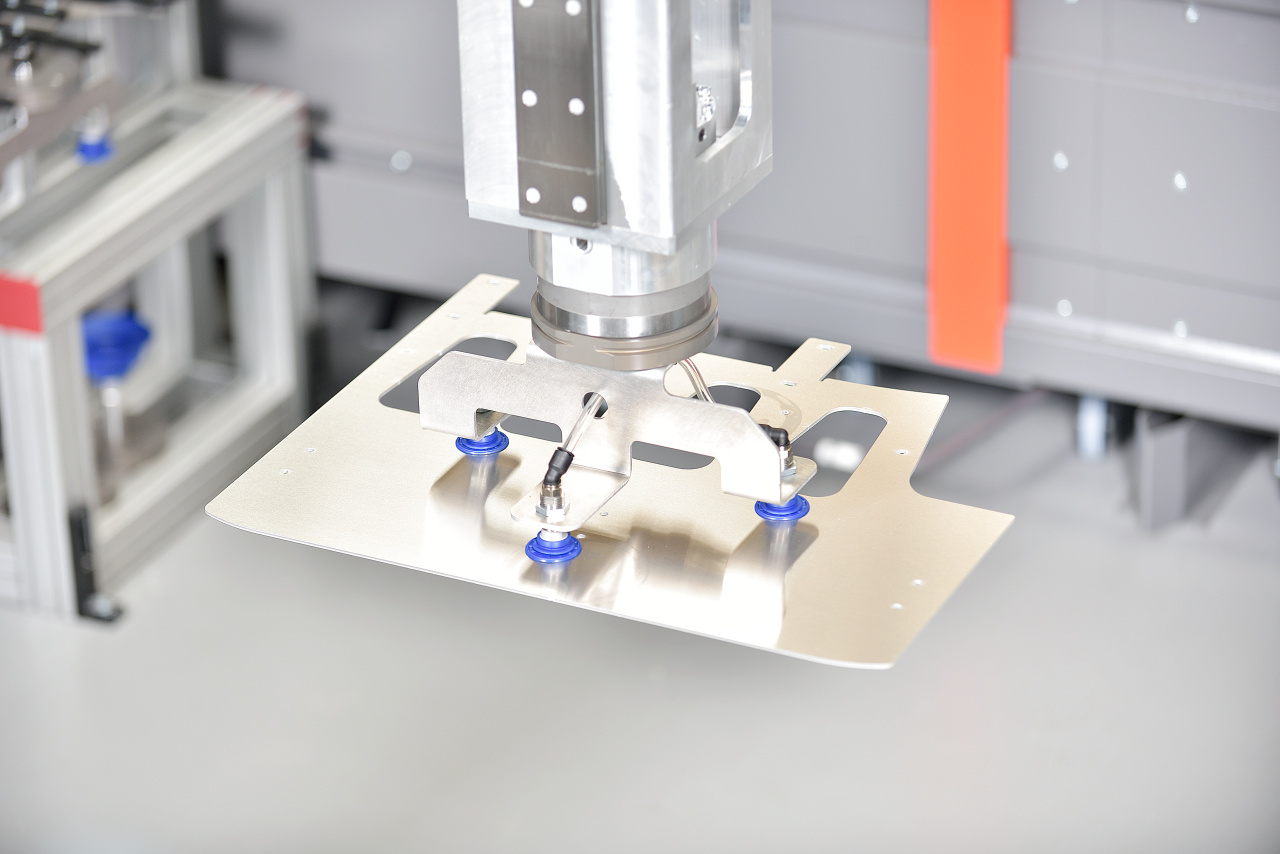

✅ A wide range of grippers: The wide range of standard vacuum and magnetic grippers is part of our BySort. In addition, you can customize your own grippers.

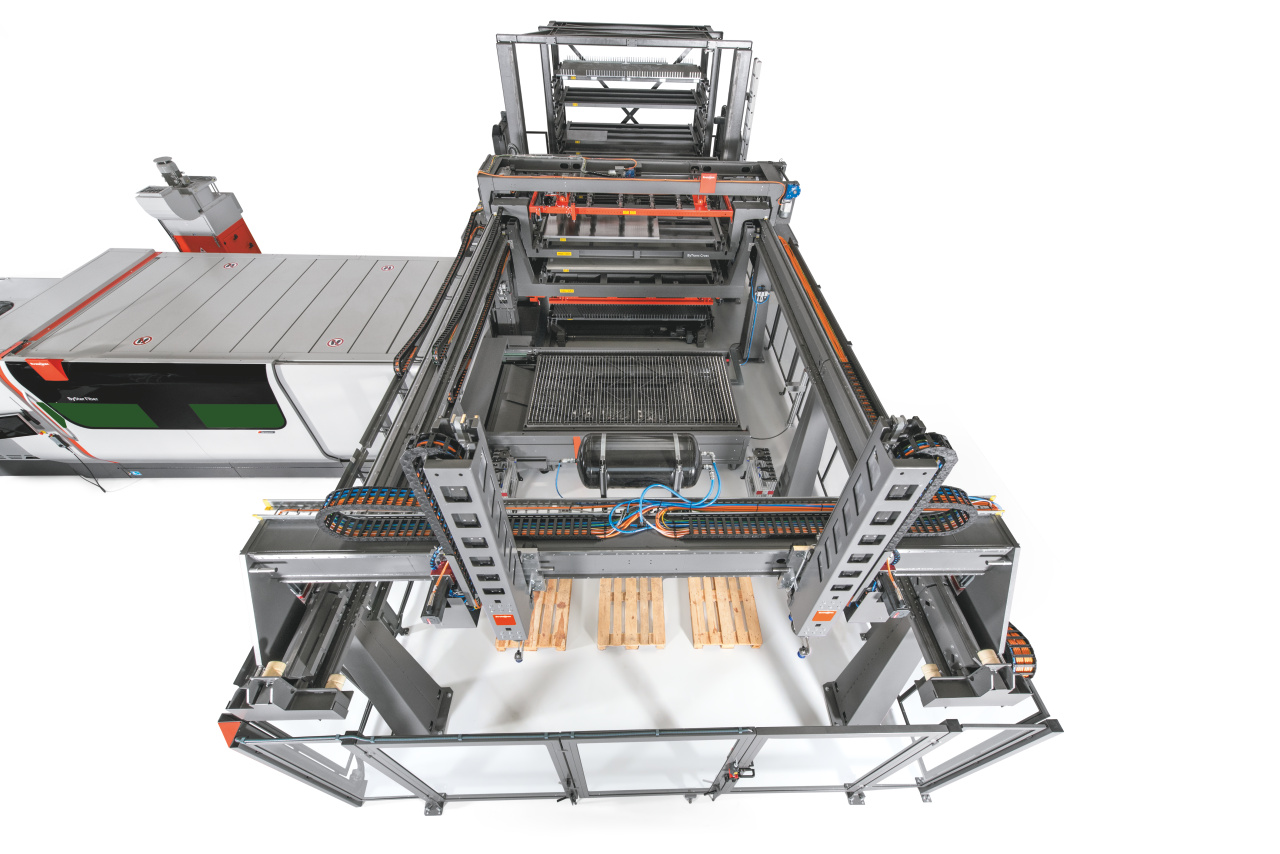

✅ Simple upgrade: Upgrade your existing ByTrans Cross or ByTrans Modular loading and unloading system with the BySort. The upgrade can be implemented at any time.
Technical specifications
| 3015 | 4020 | |
|---|---|---|
| Nominal sheet size | 120 × 60 in | 160 x 80 in |
| Sheet metal thickness | .059" to .625" | .059" to .625" |
| Number of sorting heads | 2 | 2 |
| Minimum part size | 5.9" x 5.9" | 5.9" x 5.9" |
| Maximum part size | 70" x 47" | 94" x 63" |
| Maximum part weight per head | 110 lbs | 110 lbs |
